HEART® Acoustic:
Plain Panels
Made from polyester fiber, plain acoustic panels are great for decoration alongside its excellent performance sound absorbance, negating all low frequency sounds. Our panels are flame retardant, heat insulated, anti-mildew, easy to cut with no harmful chemicals.
Certificates & Recognitions
TÜV SÜD
Noise Reduction Coefficient, NRC
Test Report No.
7191273044-MEC21-EMK
Minimum noise reduction
coefficient is 0.35.
Intertek
Fire Rating
Report Number 200802001SHF-001
EN 13823 & EN ISO 11925-2
Class B-s1, d0
Heavy Metal
Report Number 200821002SHF-001
EN71-3:2019
Not Detected
VOC Testing
Report Number 200802001SHF-001
ASTM D5116-17
<2.0 μg/m3
Singapore Green Building Council
Environmental Standard
Green Mark Scheme
SGBP-5214
3 Ticks - Excellent
Singapore Environment Council (SEC)
Environmental Standard
SEC Green Label Cat 41 041-121-3782
Environmentally Preferred Panel Boards
MyHIJAU
Malaysia’s Official Green Recognition
MyHP00355/25-001
Full Panel Dimensions
Specifications

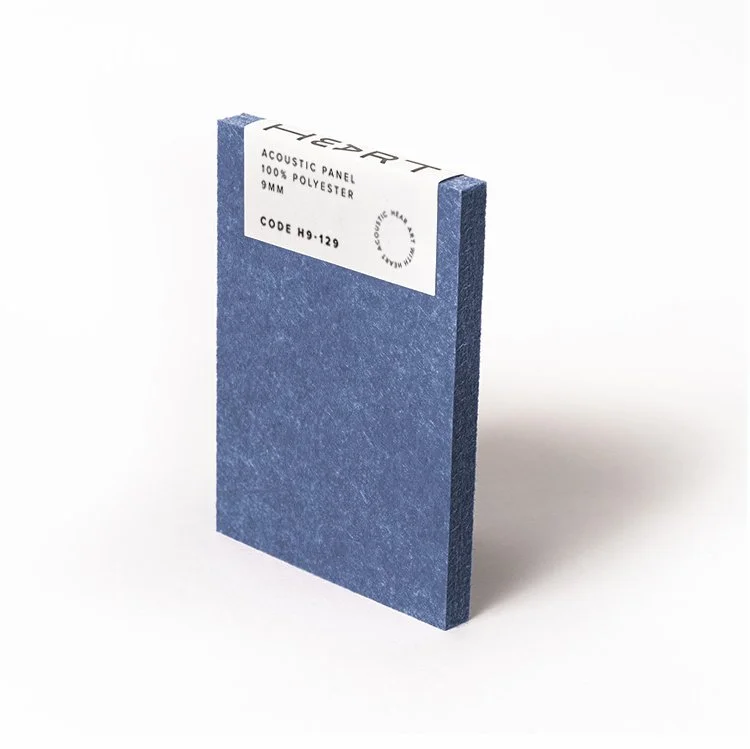

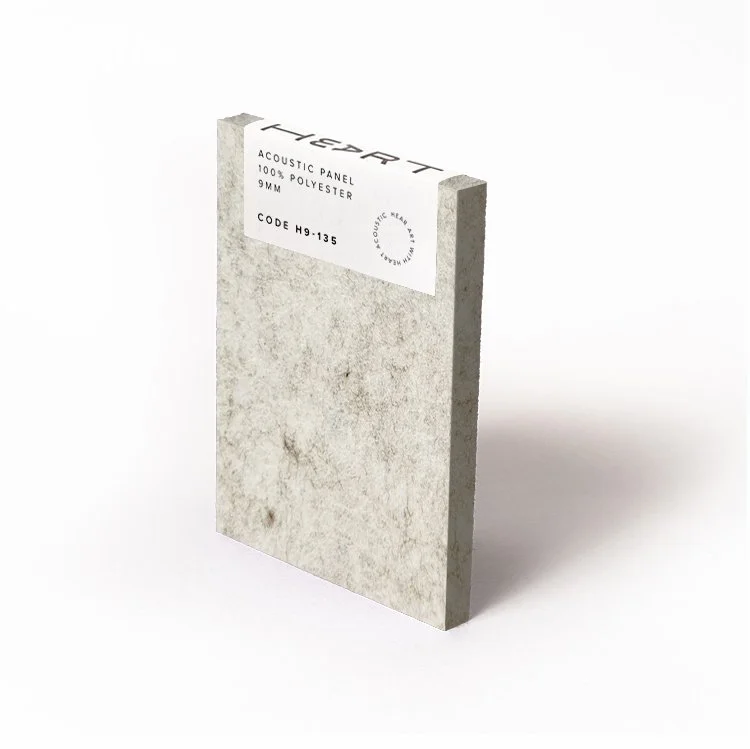

9MM
Size: 2440 x 1220 x 9mm
Weight: 5.9kg/Panel
Density: 2.0kg/m³
NRC: 0.35

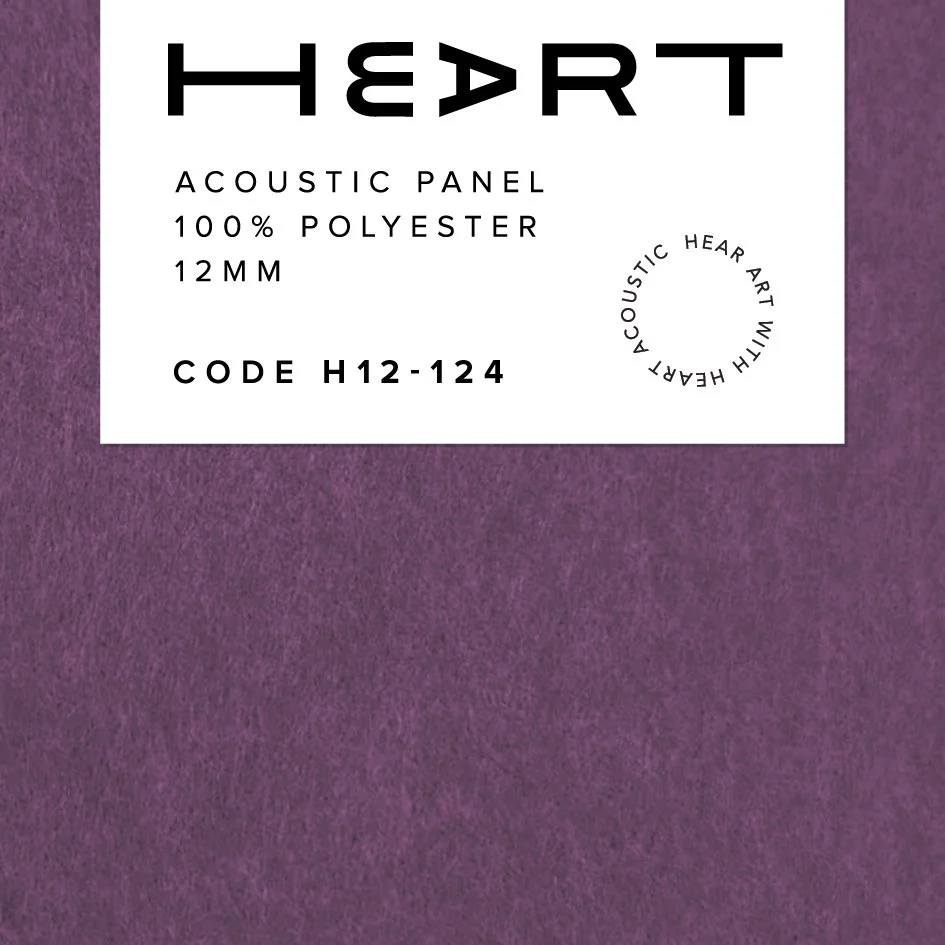

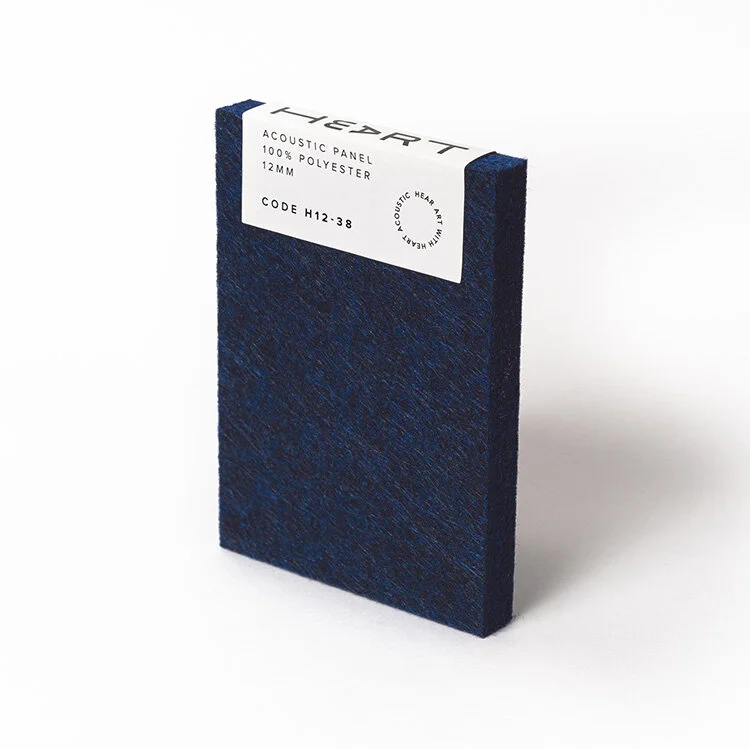

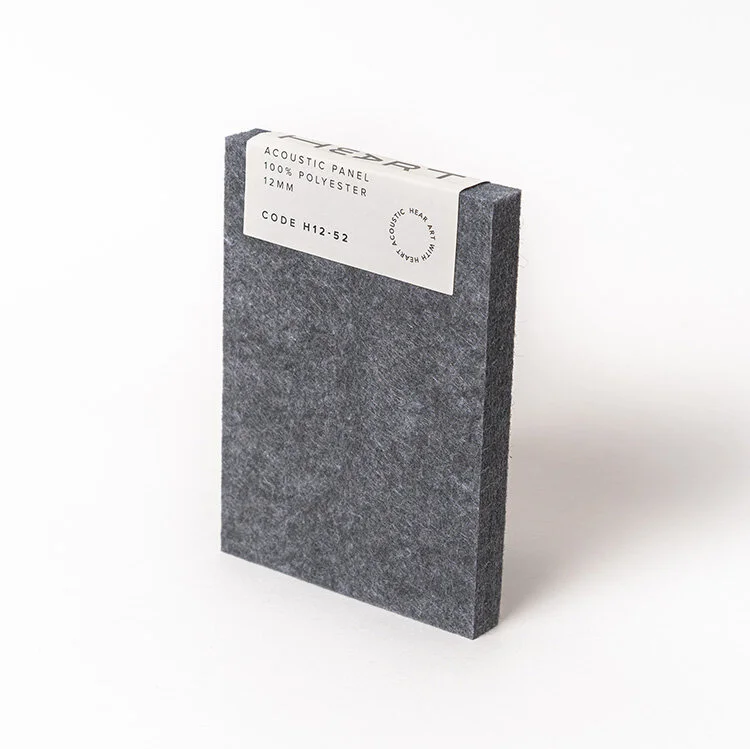

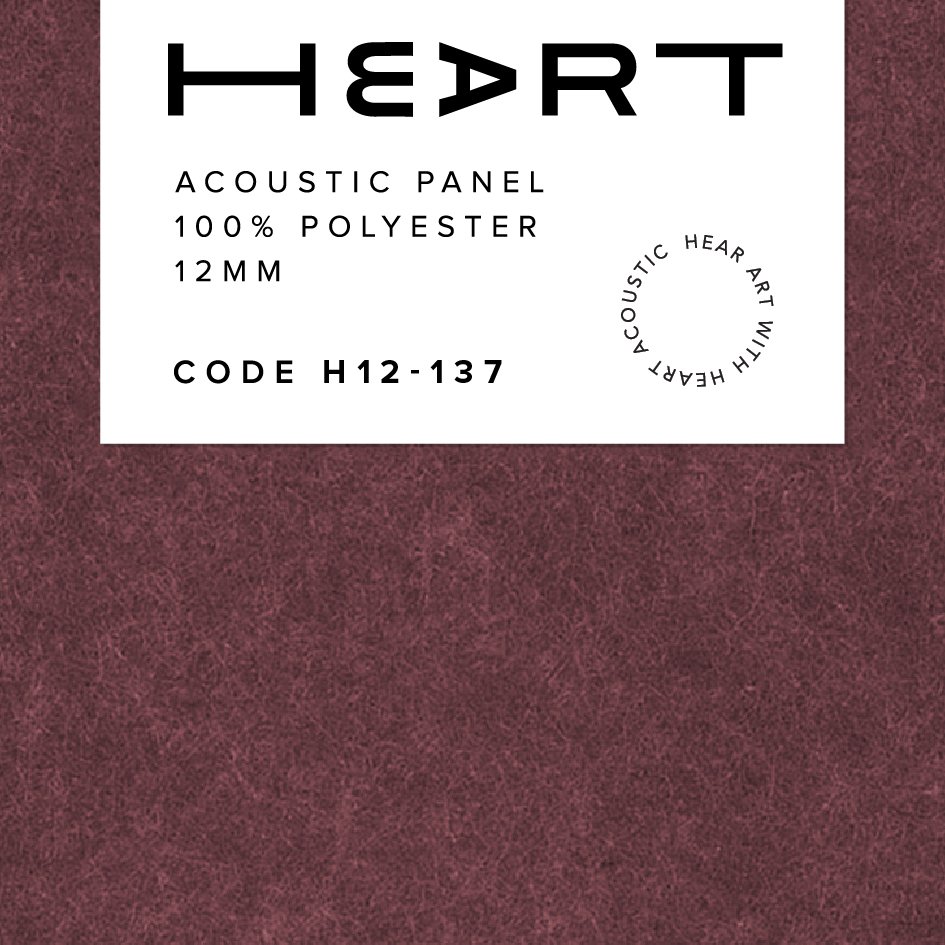

12MM
Size: 2440 x 1220 x 12mm
Weight: 6.8kg/Panel
Density: 2.3kg/m³
NRC: 0.45
18MM
Size: 2440 x 1220 x 18mm
Weight: 9.0kg/Panel
Density: 2.63kg/m³
NRC: 0.5
24MM
Size: 2440 x 1220 x 24mm
Weight: 12kg/Panel
Density: 4.0kg/m³
NRC: 0.75
